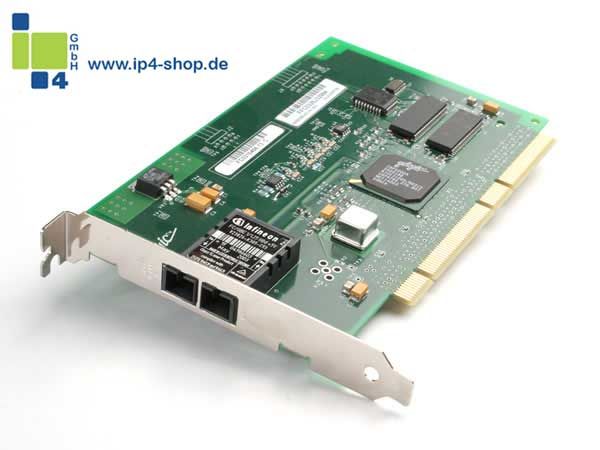

Qlogic 1-Gb/s QLA2200F/66 FC HBA PCI Card refurbished
Beschreibung
Qlogic 1-Gb/s QLA2200F/66 FC HBA PCI 66MHz Card
refurbished
Modell: QLA2200F/66
Zustand:
refurbished, 12 Monate ip4 Gewährleistung
QLA2200 FC HBA
Family Qlogic 2-Gbps QLA2200-F FC HBA Card
refurbished
Modell: QLA2200
KEY FEATURES:
MAX. DATA TRANSFER RATE: 1060 MBPS
CABLING TYPE:
FIBRE CHANNEL
SYSTEM REQUIREMENTS:
OPERATING SYSTEM: LINUX ?
MICROSOFT WINDOWS 2000 ? MICROSOFT WINDOWS NT ? MICROSOFT WINDOWS XP HOME
EDITION ? MICROSOFT WINDOWS XP PROFESSIONAL ? NOVELL NETWARE ? SUNSOFT SOLARIS
High-speed, highly scalableNetfinity
Fibre Array Storage Technology (FAStT) solutions are ready to handle awide range
of Storage Area Network (SAN) applications for your mission-criticalenterprise
network. These high-availability products support both dual-loophosts, and
dual-loop drive storage configurations with
fibre-to-fibretechnology.
- 66 MHz(1), 64/32-bit PCI host adapter
- Supports FC to SCSI and IP protocols
- Supports FC to arbitrated loop public loop profile
- Fibre Channel Chip ISP2200A
- RAM 128 Kbytes per Fibre Channel Controller
- Onboard Intelligence Single chip engine includes integrated RISC processor, Fibre Channel Protocol manager, PCI DMA controller and 1Gb transceivers per Fibre Channel Controller
- Onboard DMA Channels Three independent DMA channels per Fibre Channel Controller, two data and one command
- Frame Buffers Integrated 4 Kbyte frame buffer FIFO for each data channel, GBIC models support optional external 16 Kbyte frame buffer per Fibre Channel Controller
- Topology FCAL, Point-to-Point, Fabric
- Fabric Support FL-Port, F-Port
- Class of Service Class 2, 3
- SAN-enabled Features SCSI, IP and FC Tape. PCI boards support concurrent SCSI/IP.
- Host Bus PCI
Local Bus Specification 2.1; cPCI-Hot Swap Specification 2.1; SBus - IEEE
1496-1993
Eigenschaften
- Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
